About This

• ★★ ATTENTION: This device is NOT a power supply/Ignitor unit. (No voltage output itself, but passing voltage from your fireplace thermopile for safety reason). If using it as a switch, please connect it with power source or circuit in series. ▼ This device outputs continuous DC voltage (4.5 VDC to 6.0 VDC). It only operates Servo Motor gas valve systems. Remote will NOT replace other Durablow models' remotes or receivers, and will not work with any millivolt systems.
• ★ HOW TRANSMITTER WORKS: Durablow TS1003 transmitter and receiver box kit gives wireless remote control to a gas heating appliance thermostatically, such as a gas fireplace, fire pit, or stove with servo motor gas valve systems. ▼ Instant Thermostat + Timer control of the heat and flame adjustment range from OFF and LOW to HIGH.
• ★ HOW RECEIVER WORKS: Receiver with LEARN function, snap-on wall plate, and 36-inch wires with connectors to connect stepping servo motor gas valve. ▼ Receiver box dimension: 2.6"x2.4"x1.54". (measure your wall outlet box first). ▼ Receiver can be installed on the hearth or under the fireplace behind the control access panel.
• ★ REPLACES CROSS REFERENCE MODELS OF FIREPLACE: SkyTech SKY MRCK, SKY MRK, SKY MRCK TH, Sky-MRCK-TH, SR-1001TH. ▼ LEGAL DISCLAIMER: The Brand name and model # (if listed) are for cross reference only. All Brands, Trademarks, and Model Numbers remain the property of their respective owners.

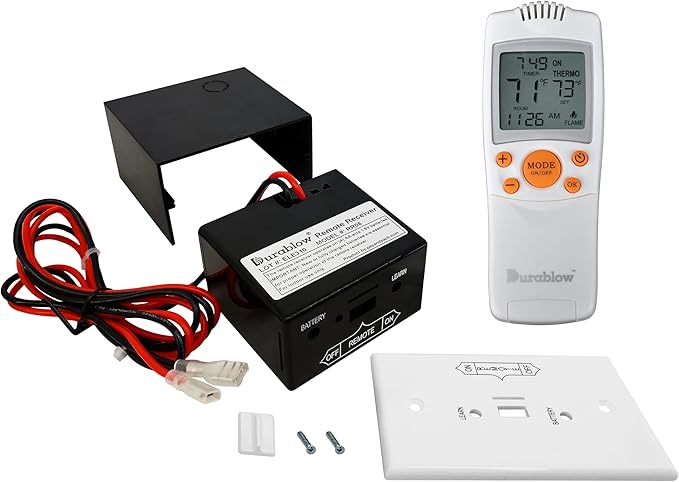

• ★ WHAT'S IN BOX: Remote transmitter, receiver box, wall mount cover plate, heat shield, screws, slide switch, wires with connectors, manuals/instructions. ▼ FCC approved. Operates at a range of 20-foot & and non-directional RF signal. ▼ The transmitter operates (2) 1.5V AAA batteries; the Receiver operates 4 (AA) batteries. ▼ Strongly recommend Energizer Lithium Batteries. ATTENTION: Any corrosion caused by a battery leak will be regarded as improper use by the user.
• ★ WIRING INSTRUCTIONS: This is compatible with all gas logs featuring the Maxitrol Flame Modulating Remote Control System, and the following gas log sets: American Hearth - VLS16MMCR, VLS18MMCR, VLS24MMCR, VLS30MMCR ; Empire - All VFSV Models ; Peterson - All G10-15MN and G10-15MP models. ▼ ONLY qualified electrician / gas technician can install the remote control system. Incorrect wiring installation will damage the gas valve, electronic module of gas appliance and also the remote receiver.

Overview

• Brand : Durablow
• Model Name : TR_SH_Series
• Product Dimensions : 5"D x 3"W x 3"H
• Controller Type : Remote
• Special Feature : remote
