JRready ST6258 DT Connector Solid Contacts Kit Size 16 Terminal KIT 30 PCS Male Pins 0460-215-16141 and 30 PCS Female Sockets 0462-209-16141 for 14-16 awg Wire Size
JRready ST6258 DT Connector Solid Contacts Kit Size 16 Terminal KIT 30 PCS Male Pins 0460-215-16141 and 30 PCS Female Sockets 0462-209-16141 for 14-16 awg Wire Size
정가
$38.63 USD
정가
$38.63 USD
할인가
단가
/
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
About This

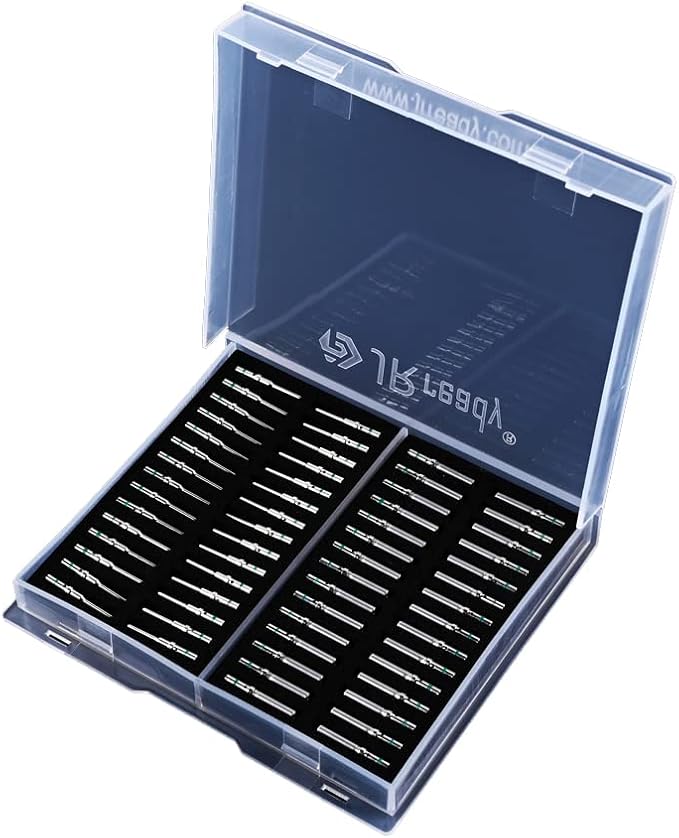

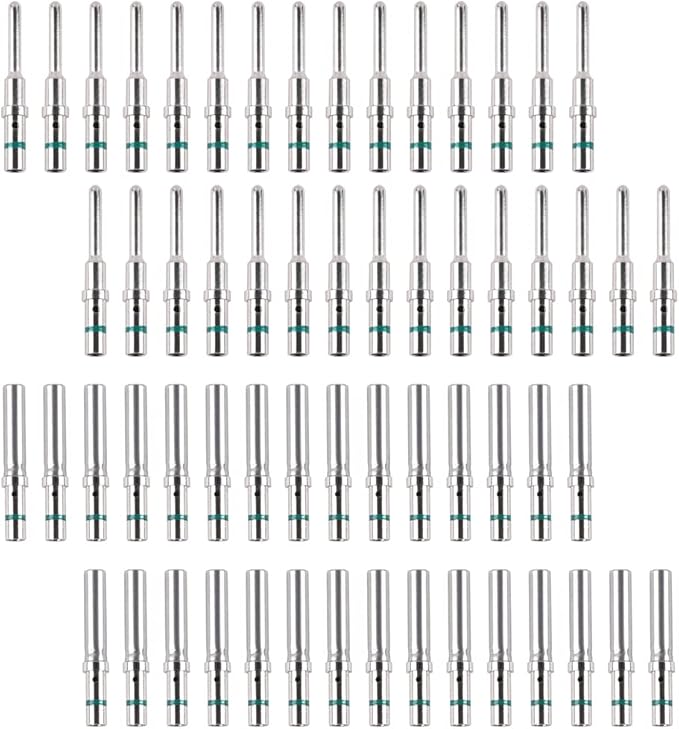

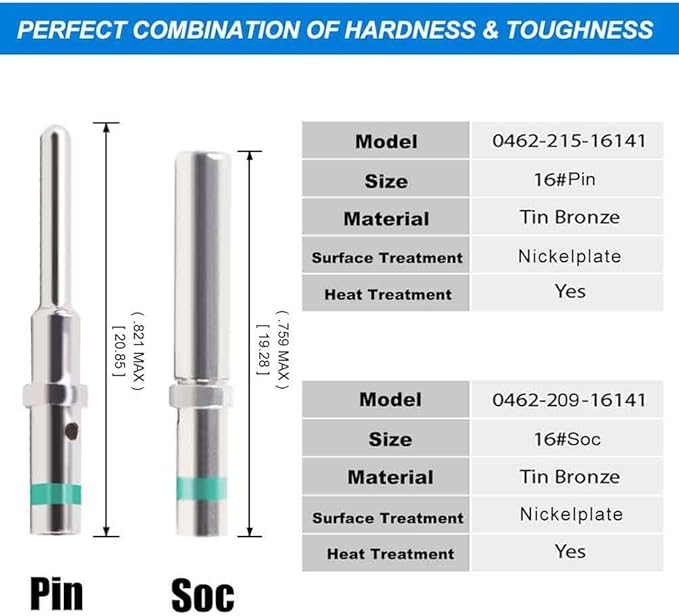

- Include: 30 PCS Male Pins 0460-215-16141 + 30 PCS Female Sockets 0462-209-16141
- Contacts Size 16: wire range 14-16 AWG
- Tool usage: Recommend to use JST2109-DT1 or JST2109-DT2 crimp tool for crimping. Specially designed indenters that guarantee pull-out force. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.
- Plug force test: the plug force is stable, can adapt to medium and high intensity vibration, and has high safety. The electrical connection is uninterrupted to ensure stable function.
- Connector Series: HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice
Overview
- Color : Green
- Connector Type : Crimp
- Contact Material : Copper
- Insulation Material : Non-Insulated
- Terminal : Pin Terminal
