About This

• 【Compatible Lights】Only support PWM 5050SMD 3528SMD 5630SMD RGBCCT FCOB COB RGBCCT 6 wires (+ R G B C W) LED strip. CAN NOT work with SPI LED strip light with IC, such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812 etc. Power: 6A/Channel Total output max 12A.DC5V 60W max.DC12V 144W max. DC24V 288W max.
• 【Two control methods】1.Must work with matching RF Remote. 2. Must work with Tuya Gateway/Bridge. Without RF Remote or Tuya Gateway the controller can not work. 2.4GHz RF remote : WR01RF, RF03RFB. Tuya Gateway : GW01W.

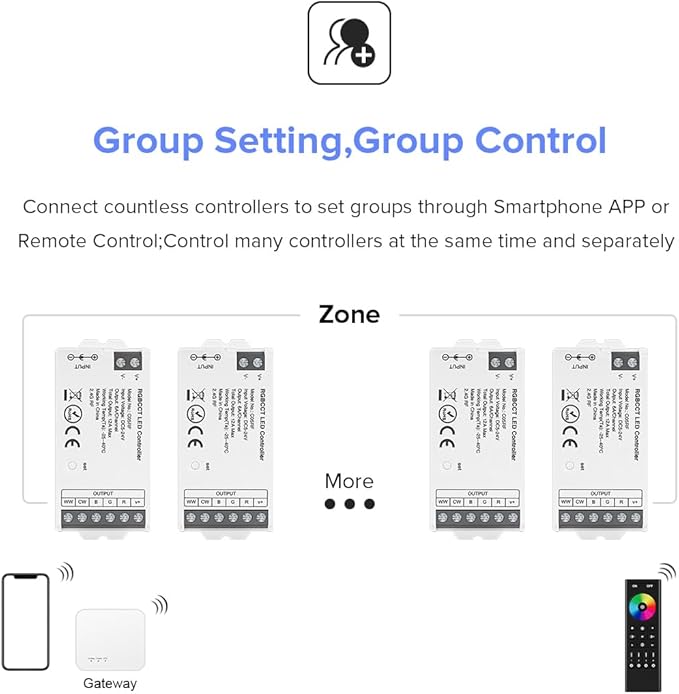

• 【Suitable For The Project】1.Multi zone control,Multiple controllers required. 2.Need 2.4GHz RF Remote or TuyaSmart SmartLife APP WiFi Control. 3. No need Bluetooth or WiFi . 4.Need Alexa or Google home third party voice control. 5.Cost effective LED project.

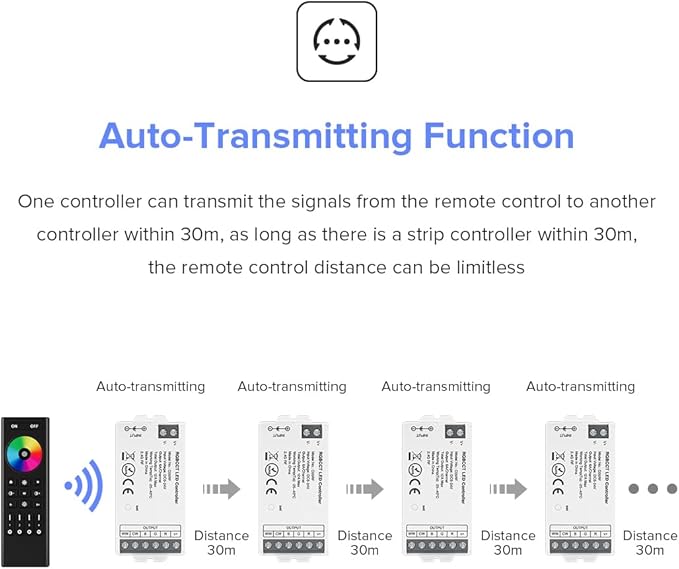

• 【Auto-transmitting Synchronization function】 One controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
• 【 Works with Tuya Gateway ,But Tuya Gateway is not included】Work with GW01W Wi-Fi+Bluetooth Dual Mode Tuya gateway/Bridge . Support Smart life and Tuya Smart APP . Can compatible with third-party voice control., Such as Alexa and Google home. Timmer setting, Device sharing, Tap-to-run, Automation, Don't disturb mode.
• 【Package content】1X C05RF Tuya Controller. Note: There is no RF Remote or Gateway.Remote and gateway need to be purchased separately.

Overview

• Color : Rgbcct
• Brand : BTF-LIGHTING
• Indoor/Outdoor Usage : Indoor
• Special Feature : Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway
• Light Source Type : LED
• Power Source : DC
• Light Color : Multicolor
• Theme : Indoor Lighting
• Occasion : Christmas
• Style : Modern
