About This

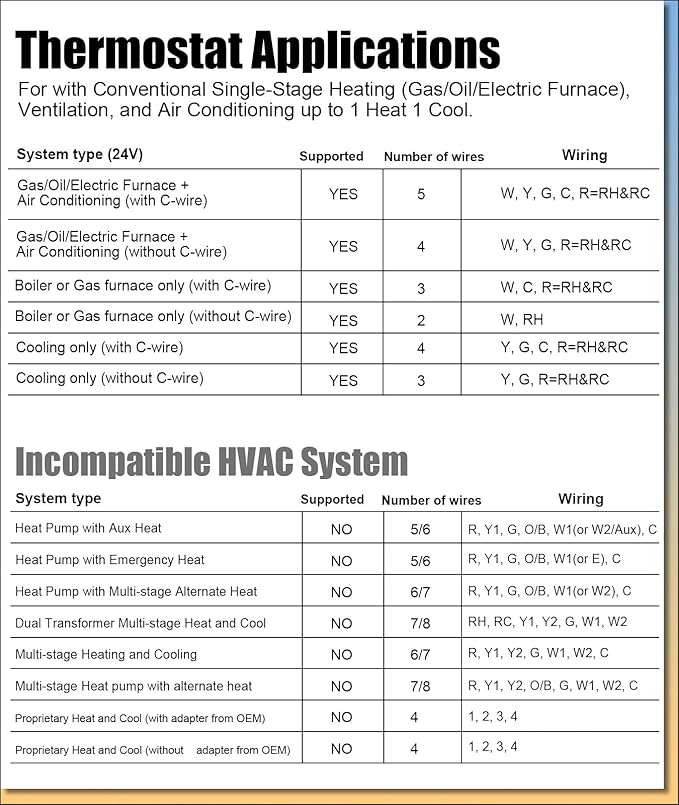

• COMPATIBILITY: Works with conventional single-stage systems up to 1 Heat/1 Cool, including gas/oil/electric furnace, air conditioning, and Only 1H/1C heat pump (without aux) systems.
• NOT COMPATIBLE : Does not work multistage systems (1H/2C, 2H/2C, 3H/2C), HVAC heat pump systems (2H/1C, 2H/2C, 4H/2C), PTACs, 3-wire hydronic (hot water), dual fuel/hybrid heating. Does not work line voltage systems (120-240V electric baseboards heat); mini split heat pump air conditioner, RV air conditioners mach and roughneck series.

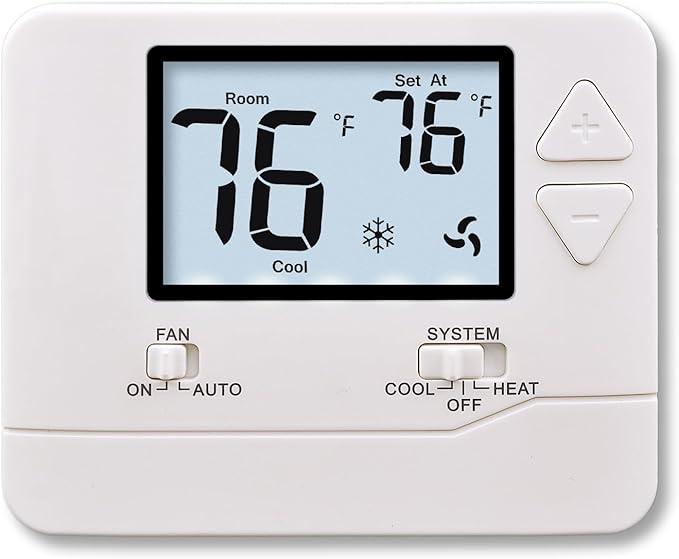

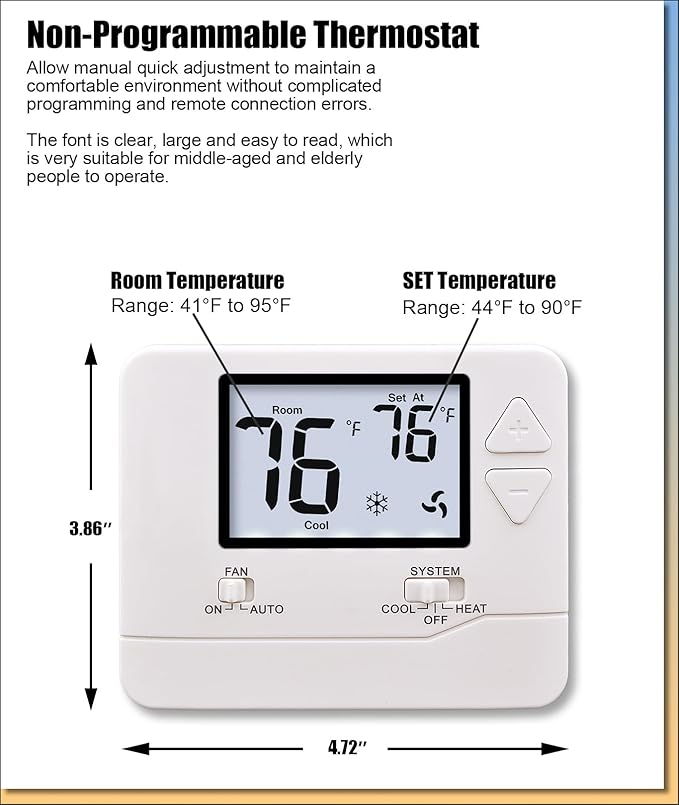

• DISPLAY FEATURES: Large white backlit LCD screen shows temperature range from 41°F to 95°F, perfect for easy viewing in any lighting condition

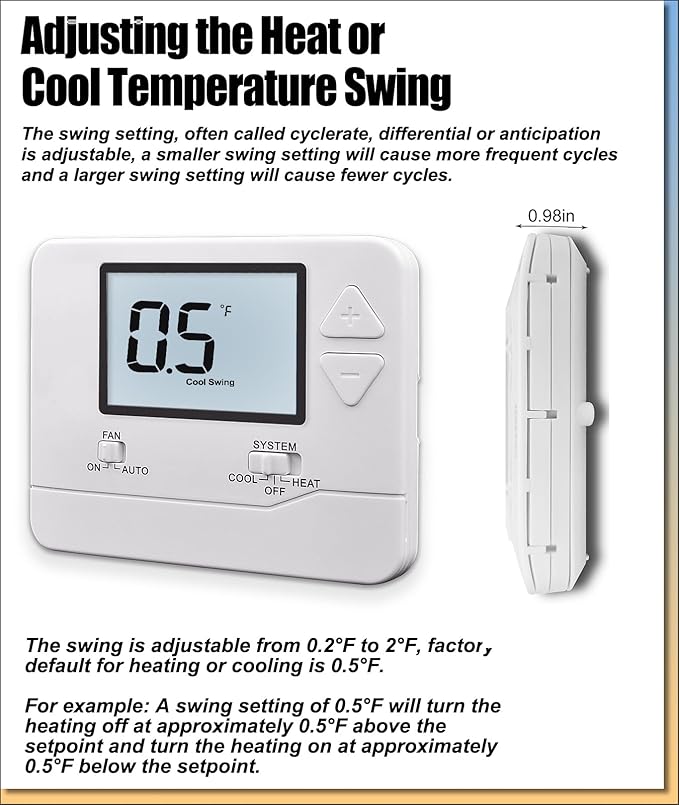

• TEMPERATURE CONTROL: Adjustable range of 44°F to 90°F with separate heating and cooling swing settings to optimize comfort and system cycling

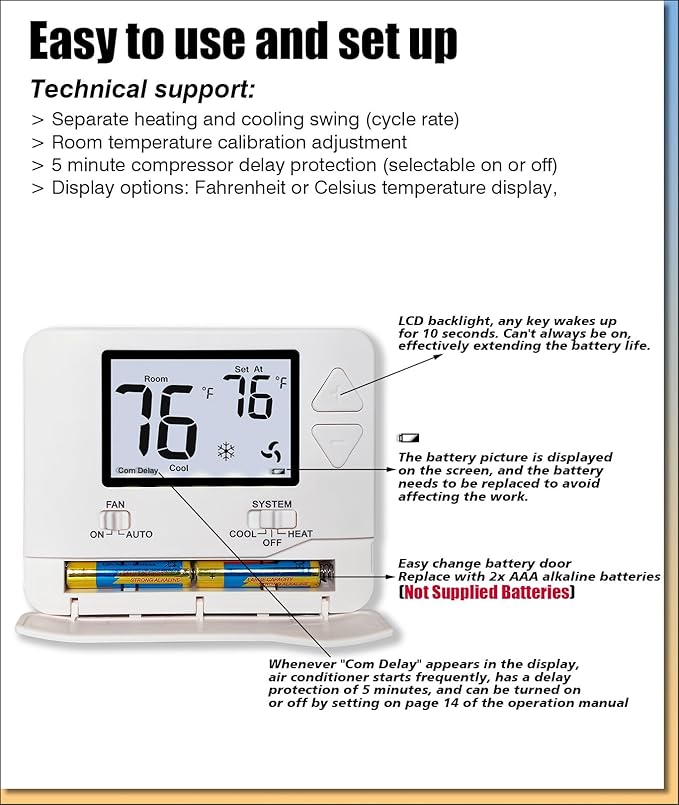

• POWER OPTIONS: Dual-powered functionality using either 24VAC power or 2 AAA batteries (not included) for flexible installation

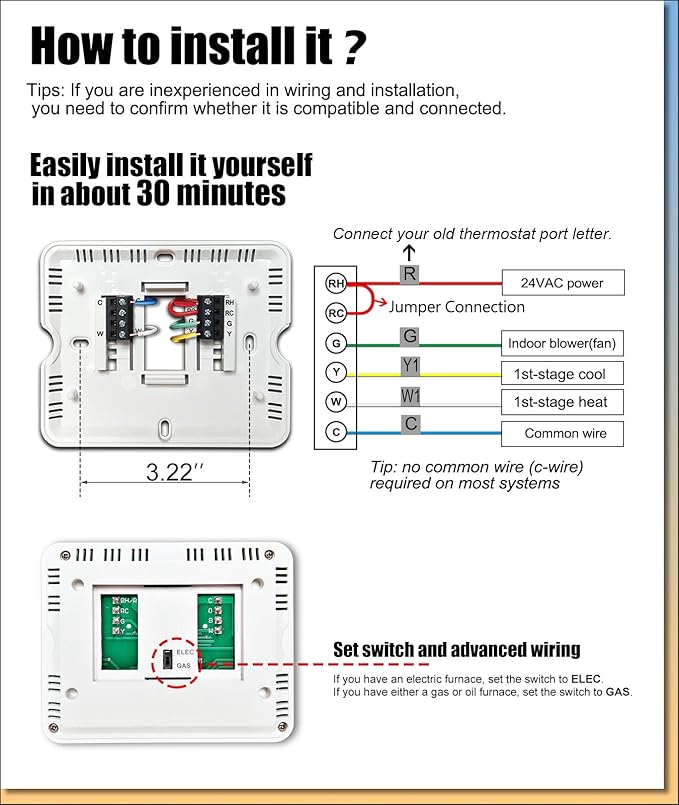

• INSTALLATION SPECS: Requires 2-5 wire configuration with built-in 5-minute compressor delay protection and temperature calibration adjustment from -4°F to +4°F

Overview

• Brand : Heagstat
• Model Name : Single-Stage Thermostat
• Product Dimensions : 0.98"D x 4.72"W x 3.86"H
• Controller Type : conventional single-stage systems
• Special Feature : Separate Heating and Cooling Swing (Cycle Rate), Temperature display calibration (Fine adjustment -4F to 4F), Set fahrenheit or celsius units, Compressor delay 5-minute protection (set on/off). Separate Heating and Cooling Swing (Cycle Rate), Temperature display calibration (Fine adjustment -4F to 4F), Set fahrenheit or celsius units, Compr… See more
